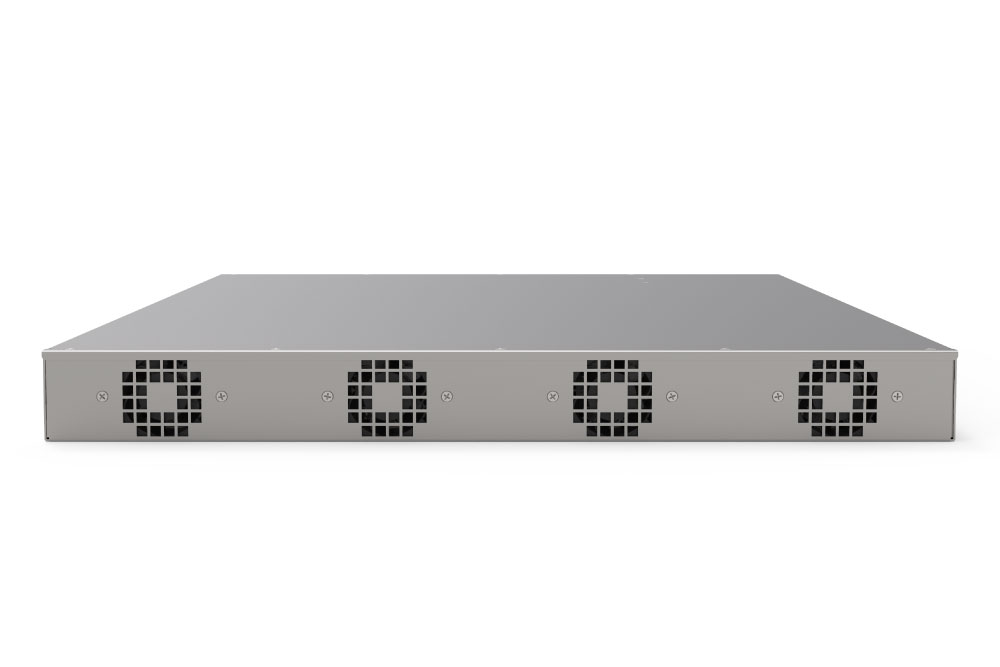

NDS1083/4
1U 122TB Hybrid Edge and CDN Platform
The Viking Enterprise Solutions (VES) NDS1083/4 is Intel Xeon D-1518 based system which offers up to 122TB of capacity with spinning LFF drives and SFF SSDs, including U20040.
It is designed to fit in a 2 post or 4 post rack, it can be deployed at edge points of the network for minimizing network load. The system operates in environment of up to 40°C. With its exceptional thermal management and drive rotation vibration mitigation, the platform is highly reliable.

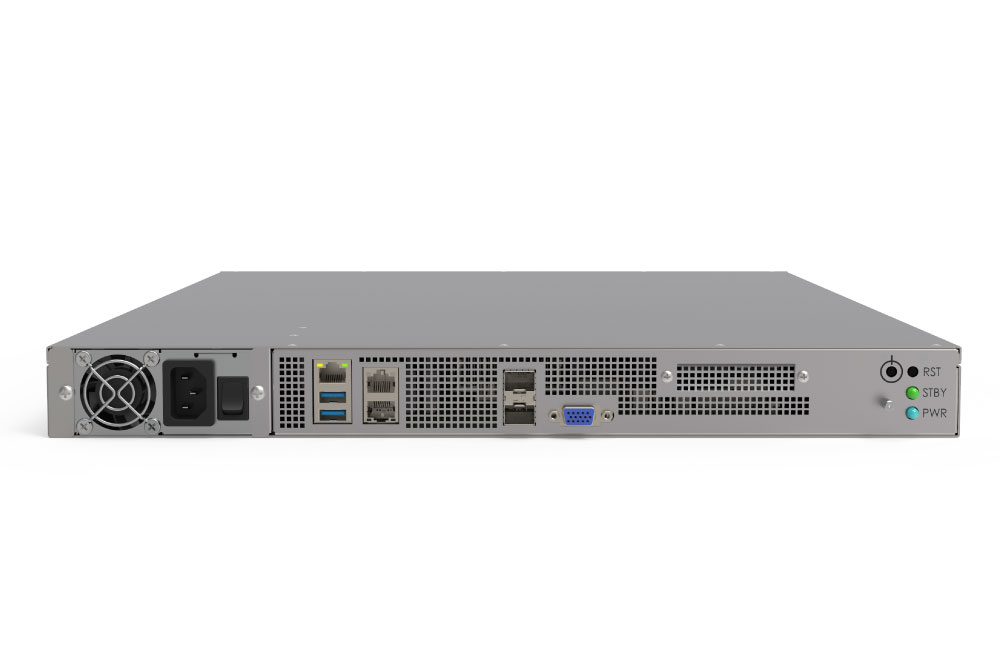

NDS1083/4 supports AC and DC input power for maximum flexibility. It can operate indefinitely with a single fan fail minimizing service. Two power and reset buttons, along with two LEDs to indicate power and stand-by provides basic functionality without any KVM connection. Two 10GbE networking port all for fast content delivery.
FEATURES
- Highly reliable platform
- Can operate indefinitely with a fail fan minimizing service
- Operates in environment of up to 40°C
| 4U RACKMOUNT ENCLOSURE | AC POWER | MONITORING & REPORTING | SAFETY STANDARDS | ENVIRONMENT PROTECTION | DRIVE CONFIGURATION | ETHERNET CONNECTIVITY | COMPUTE |
| Dimensions: 28” L X 17.5” W X 1.75” H | Input Voltage: 100-240V AC 50/60 Hz | Standard IPMI interface | IEC/EN UL/CSA 60950-1 2nd Edition | RoHS & WEEE compliant | Up to 8 LFF drives | Up to 20 Gb/s Ethernet connectivity via motherboard | Intel Xeon D-1518 Processor |
| Weight for VES NSS-1081/2: 40 LBS | DC Input: 48V-60V DC 16A – 10A MAX | 1GbE data center connection for management | NEBS Level 1 Compliant | Single NVMe M.2 SSD (2242/2280/2210) | 128GB ECC DDR4 RDIMM 64GB ECC/Non-ECC DDR4 UDIMM | ||
| Option for a PCIe Gen 3 x8 half-length, half-height expansion card |
NDS1083/4
NDS1083/4: Intel Xeon storage server system with up to 122TB of capacity with HDDs and NVMe SSDs.
