VDS4607 – 4U/60-Bay Storage Expansion Platform

SAS-4 High-Density and High-Availability JBOD
The Viking Enterprise Solutions (VES) VDS4607 is a SAS-4, high density 4U/60-Bay JBOD expansion storage solution that packages 3.5″ hard disk drive (HDDs) with two active 24 Gb/s I/O modules.

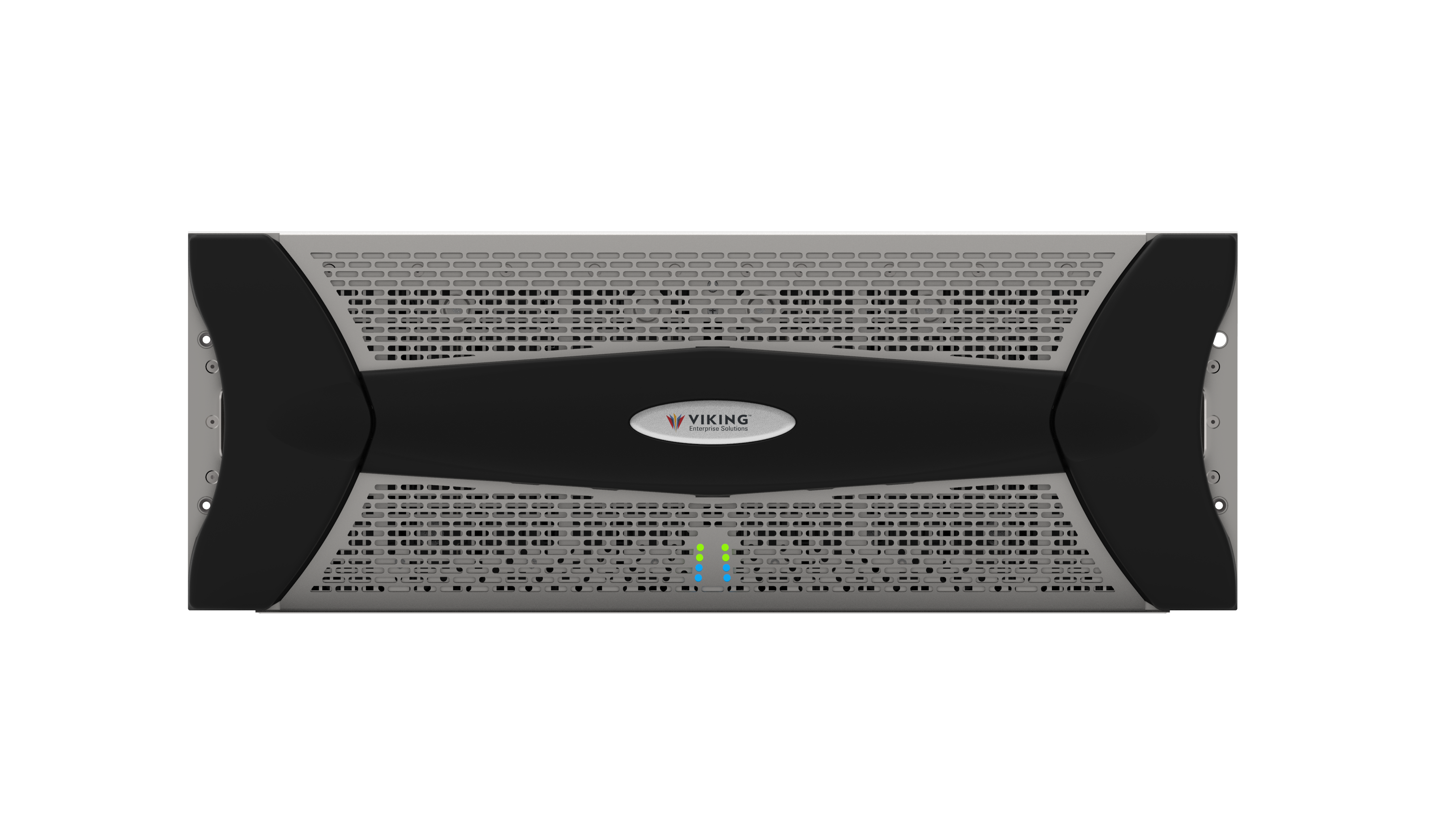

VDS4607 front direct

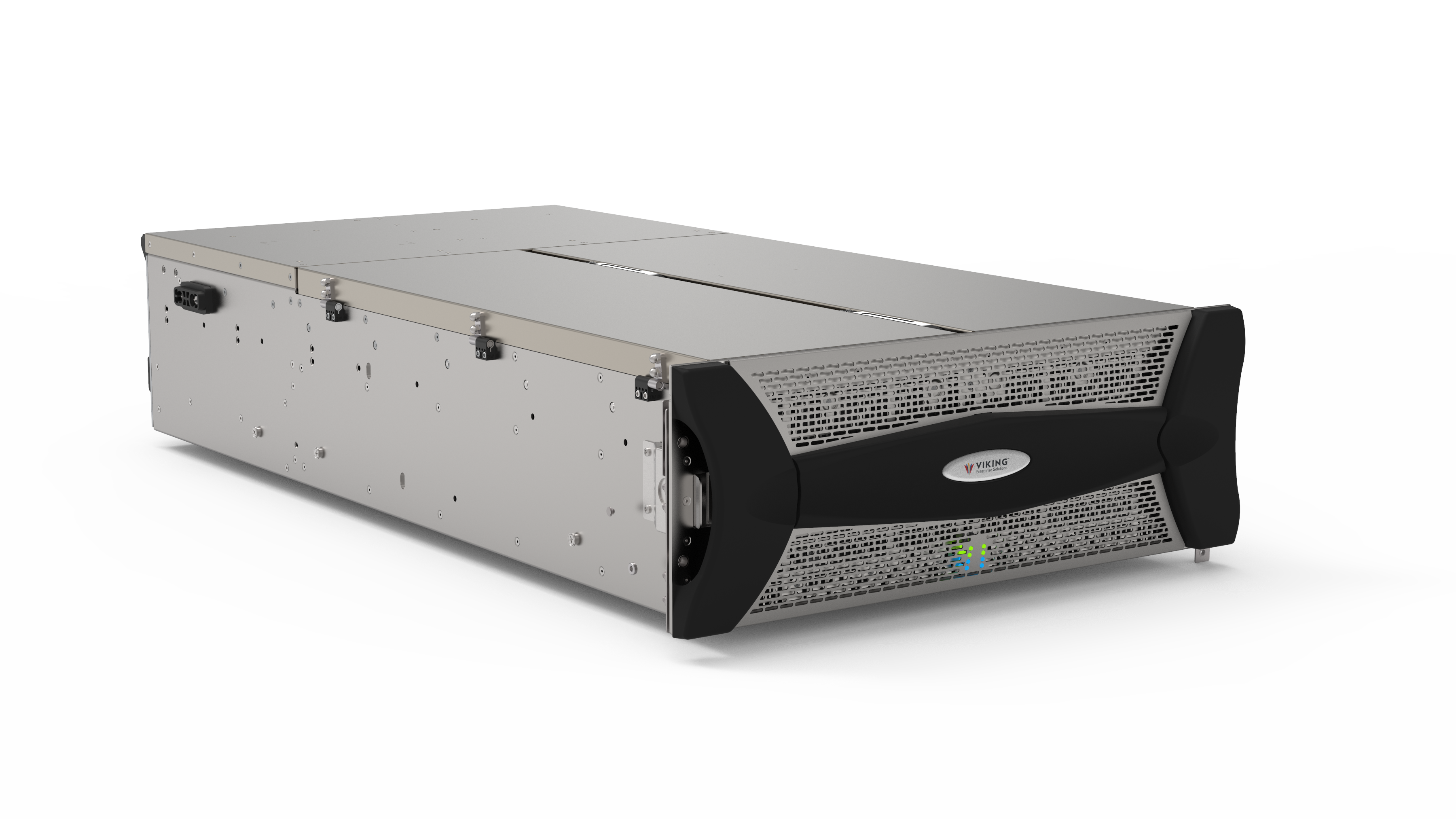

VDS4607 front iso

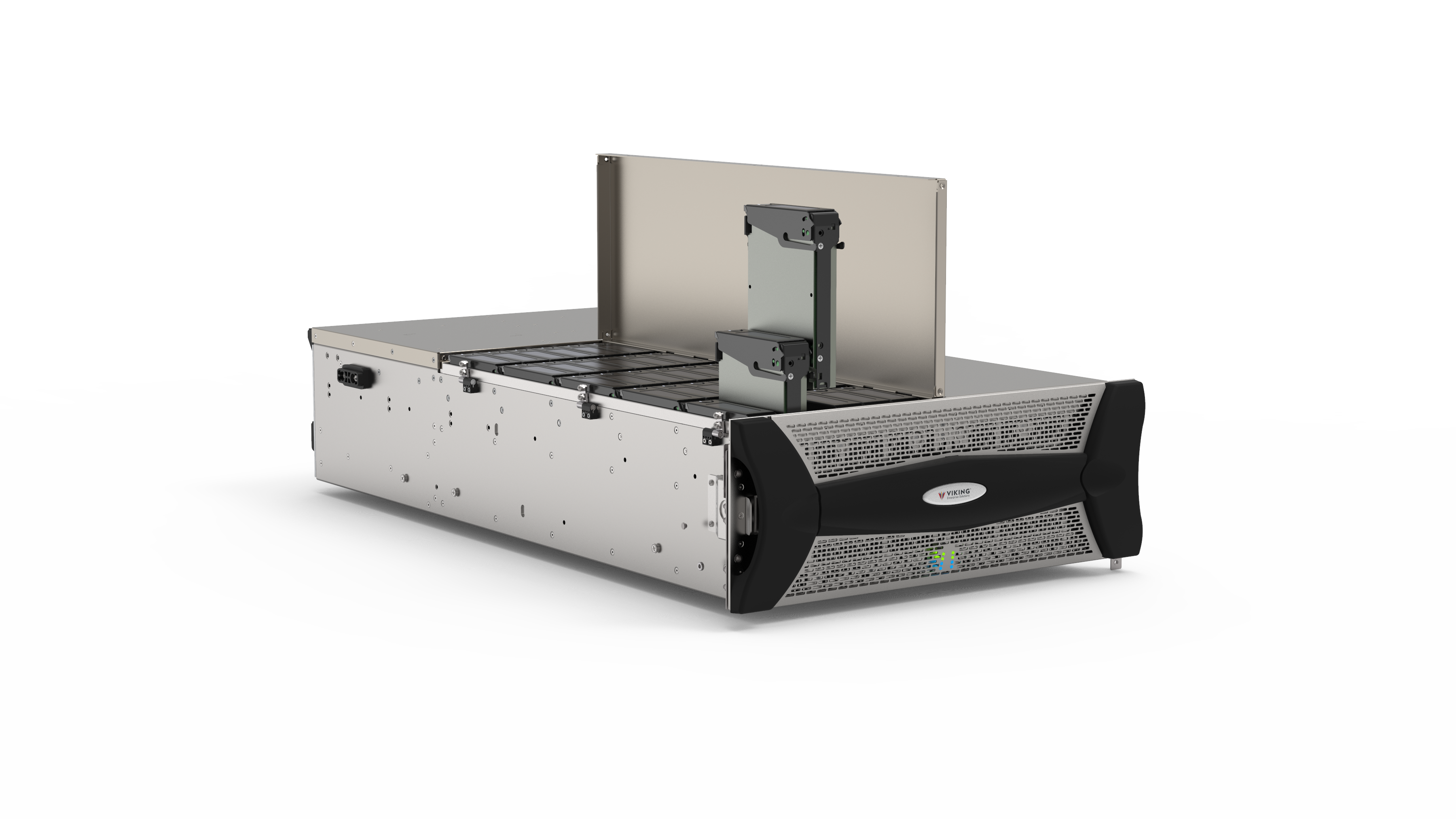

VDS4607 exploded front

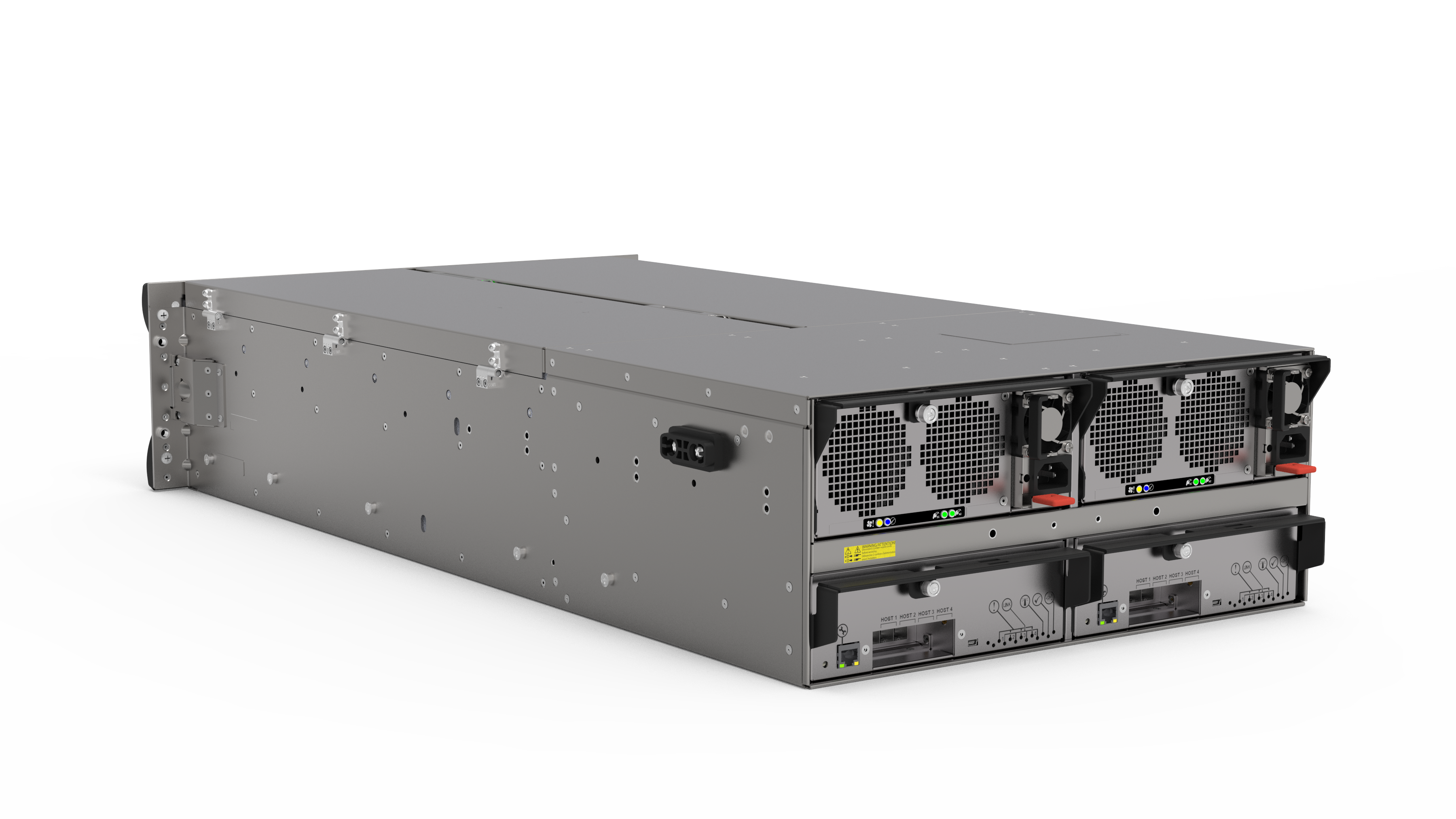

VDS4607 Iso Rear dual controller

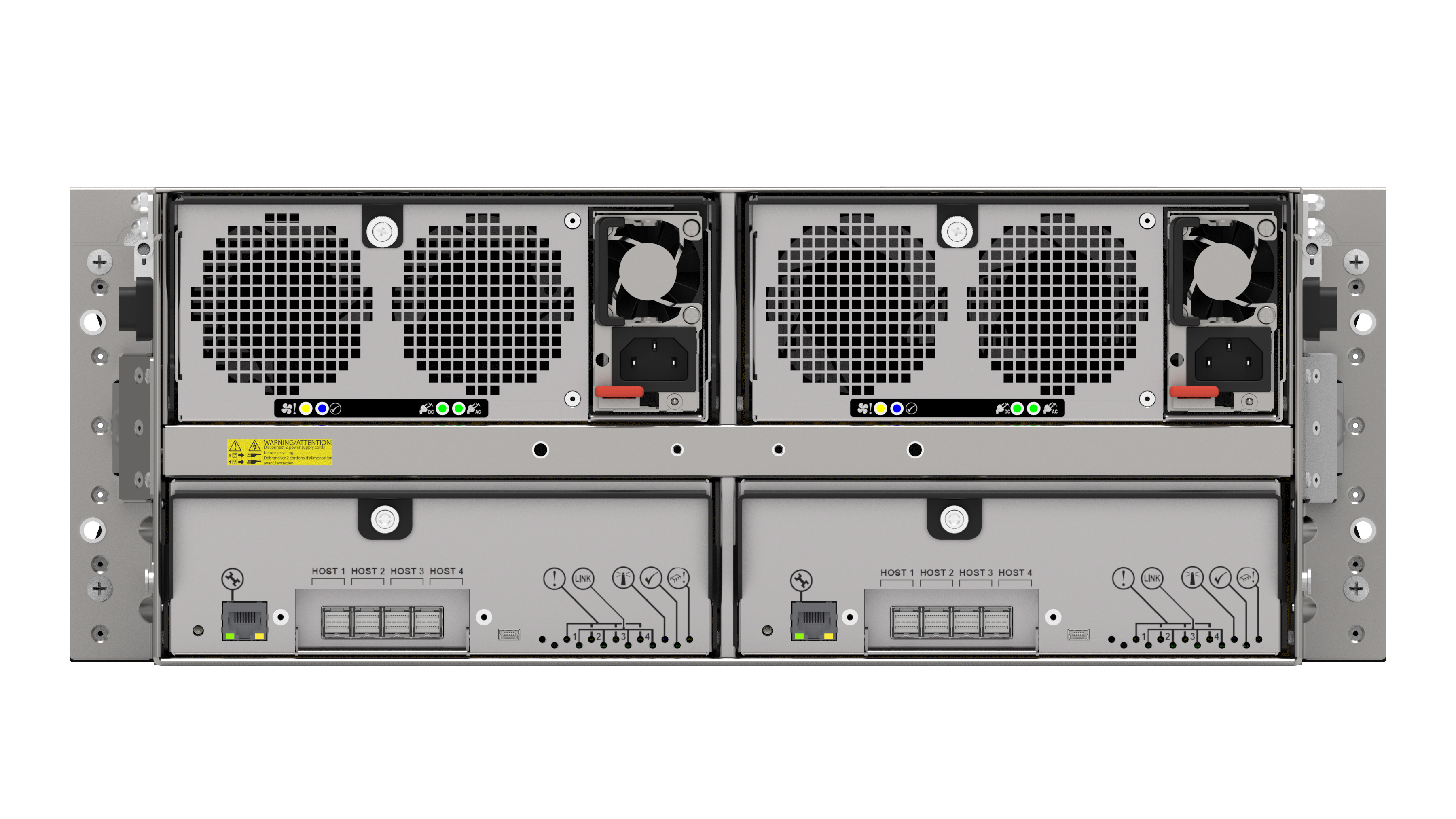

VDS4607 Direct Rear dual controller

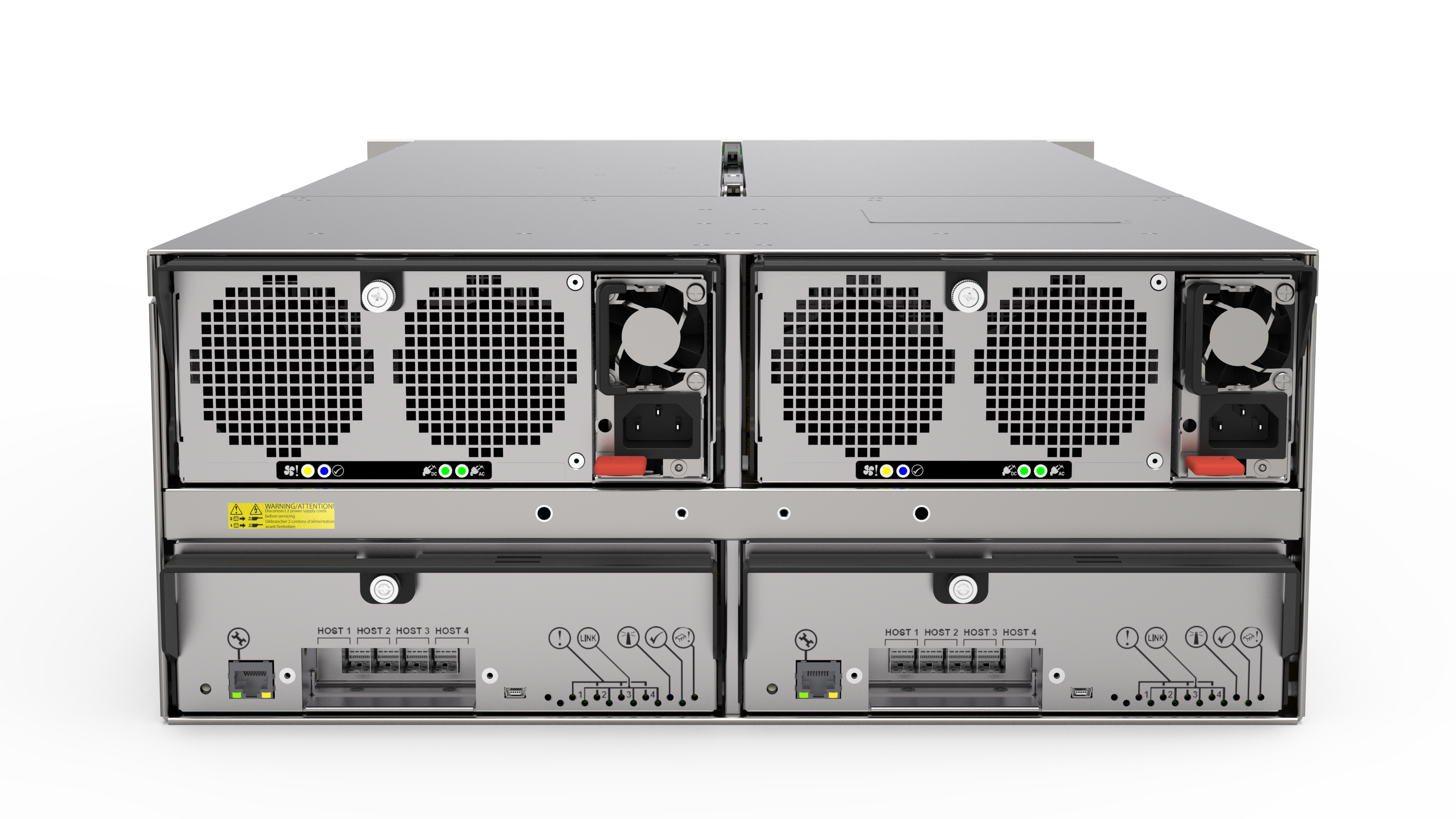

VDS4607 Hero Rear dual controller
previous arrow
next arrow
VDS4607 front direct
VDS4607 front iso
VDS4607 exploded front
VDS4607 Iso Rear dual controller
VDS4607 Direct Rear dual controller
VDS4607 Hero Rear dual controller
previous arrow
next arrow

Designed to enable scaling of storage capacity to meet the needs of a wide range of enterprise-grade storage applications requiring full redundancy, the VDS4607 provides excellent density, capacity, cost/GB, and a reduced footprint for even the largest of today’s most demanding data centers. It enables the expansion of external storage in file, block and object storage format through a standard SAS-4 24Gb/s interface between the JBOD and any standard Host Bus Adapter in a server.

The VDS4607 JBOD enclosure offers best-in-class performance and capacity, space-saving density, and “green” energy efficiency.

The VDS4607 fits into an industry-standard 19” rack / 1 meter deep. Its flexible configuration allows it to be deployed in a variety of applications, including:

VDS4607 FEATURES



  • Full-featured robust 24Gb/sec high-performance SAS 4.0 storage enclosure
  • Operation with either single I/O controller or dual I/O controllers for redundant failover
  • Multiple Drive partitioning/split-bus zoning modes
  • Hot-pluggable I/O controller(s) and dual redundant, high efficiency, advanced power supplies
  • SFF-8674 24Gb/sec SAS 4.0 host
  • Flexibility to choose SAS or SATA drives to achieve the right performance, reliability and price
  • Modular design increases product configuration flexibility
  • Dual Actuator HDD supported
  • SAS point-to-point connectivity isolates drive failures, increasing reliability and fault tolerance and improving performance

VDS4607 SPECIFICATION

HOST/EXPANSION INTERFACES CAPACITY REDUNDANT HOT-SWAPPABLE COMPONENTS FIRMWARE 4U RACKMOUNT ENCLOSURE FAILURE NOTIFICATIONS
One or two VES SAS 4.0 I/O controller modules per system, with each I/O module supporting 4x 24Gb/sec SAS 4.0 SFF-8674 ports 60 drive capacity per 4U enclosure Up to two SAS 4.0 JBOD I/O controller modules SCSI Enclosure Services (SES) 3.0 based firmware Dimensions: 7.0 in. H x 16.6 in. W x 34 in. D (17.7 cm H x 40.1 cm W x 864.0 cm D) SCSI Enclosure Services (SES-3.0) over in-band interface & via LEDs
Two AC power supplies Weight with drives: 220 lbs (100 kg) max
Two Regulator modules to provide hard drive power Standard Rackmount Rail Kit with integrated cable management
Two independent AC power inlets
Up to 60 Drives



 DISK DRIVES AC POWER DRIVE PARTITIONING/SPLIT-BUS ZONING MONITORING AND REPORTING PERFORMANCE OPERATING ENVIRONMENT
60 independent point-to-point connections to each SAS or SATA disk drive with dual-port access & failover by each controller to each drive Input voltage: 180-264V AC Controller module can be zoned in four pre-defined zoning schemes Monitoring for temperature, advanced power & cooling modules including fan speed control, disk drives & I/O module(s), as well as error rates & quality of service Up to 48 GB/s (sustained reads) using 12 Gb/s SSD drives Temperature: 5° to 35°C
Form factor: 3.5” & 2.5” SAS, SATA & SSD drives Input frequency: 47-63 Hz Additional zoning schemes can be developed upon request In-band reporting of all serial number, part number, & revisions of each FRU & chassis Up to 76 GB/s (sustained reads) using 12 Gb/s SSD drives & EDFB Relative humidity: 20% to 80% (non-condensing)
Rotational speeds up to 15K RPM Input current: 20.0 Amps max @ 230VAC Altitude: -200 to 10,000 feet
Interface: 12Gb/s-6Gb/s SAS; 6 Gb/s SATA Maximum system continuous DC output power rating: 1600 Watts – Reduced power at low line voltages Shock: 3G at 11ms, 1/2 sine wave pulse
Vibration: 0.10G at 5 Hz to 500 Hz
Acoustics: TBD Bels at normal operation tested to ISO7779



I/O CONTROLLER MODELS NON-OPERATING ENVIRONMENT ELECTROMAGNETIC EMISSIONS & IMMUNITY STANDARDS SAFETY STANDARDS QUALITY STANDARDS ENVIRONMENT PROTECTION
Single Controller 24Gb/ SAS 4.0 JBOD I/O controller module with support for storage expansion Temperature: -40° to 60°C CE Mark UL 60950 Manufactured under an ISO 9002 registered quality system RoHS & WEEE compliant
Dual redundant 24Gb/ SAS 4.0 JBOD I/O modules, each with support for storage expansion enclosures Relative humidity: 10% to 90% (non-condensing) EN55022/EN61000 Class A CSA 22.2-950
Altitude: -200 to 40,000 ft FCC Class A IEC/EN/UL/CSA 60950-1, 2nd Edition
Shock: 10G at 11ms, 1/2 sine wave pulse Canadian IECS-003
Vibration: 0.5G at 5Hz to 500Hz

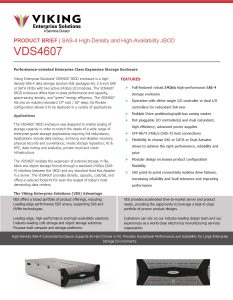

VDS4607

VDS4607: High Density Storage enclosures enables 60, 3.5″ or mix of 2.5″ SAS/SATA HDD and SSD drives.
